Diodes Incorporated-DZ9F10S92-7 - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	DZ9F10S92-7	DZ9F18S92-7	DZ9F16S92-7	DZ9F12S92-7	DZ9F15S92-7	DZ9F11S92-7	DZ9F20S92-7	DZ9F13S92-7
Manufacturer	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	10 V	18 V	16 V	12 V	15 V	11 V	20 V	13 V
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power - Max	200 mW	200 mW	200 mW	200 mW	200 mW	200 mW	200 mW	200 mW
Impedance (Max) (Zzt)	30 Ohms	50 Ohms	50 Ohms	30 Ohms	42 Ohms	30 Ohms	55 Ohms	37 Ohms
Current - Reverse Leakage @ Vr	100 nA @ 7 V	100 nA @ 14 V	100 nA @ 12 V	100 nA @ 9 V	100 nA @ 11 V	100 nA @ 8 V	100 nA @ 15.4 V	100 nA @ 10 V
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA
Operating Temperature	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	SOD-923	SOD-923	SOD-923	SOD-923	SOD-923	SOD-923	SOD-923	SOD-923
Supplier Device Package	SOD-923	SOD-923	SOD-923	SOD-923	SOD-923	SOD-923	SOD-923	SOD-923

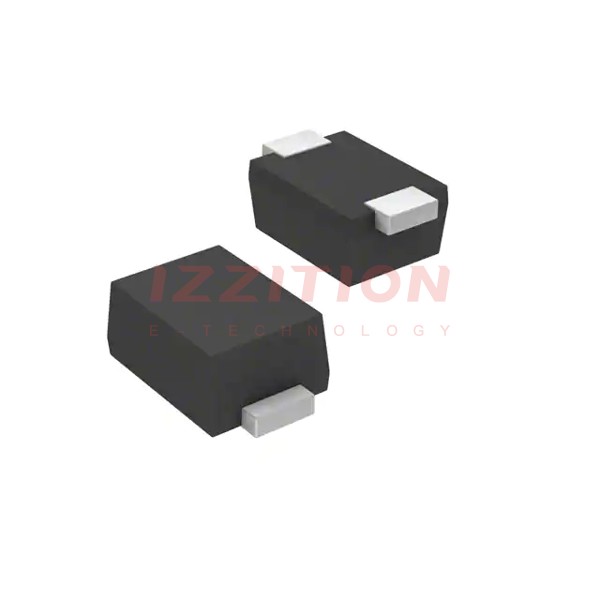

Diodes Incorporated DZ9F10S92-7
