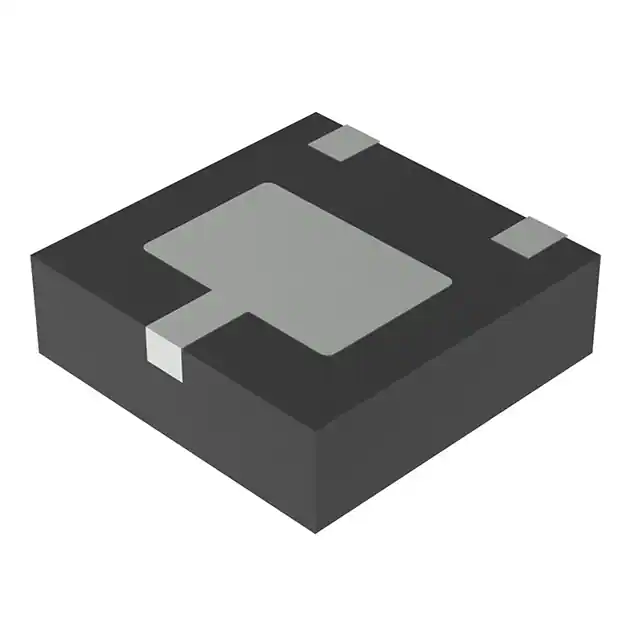

| Part Number | DXTP5840CFDB-7 | DXTN5840CFDB-7 | DXTP5820CFDB-7 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Transistor Type | PNP | NPN | PNP |
| Current - Collector (Ic) (Max) | 4.8 A | 5 A | 6 A |
| Voltage - Collector Emitter Breakdown (Max) | 40 V | 40 V | 20 V |
| Vce Saturation (Max) @ Ib, Ic | 370mV @ 30mA, 3A | 350mV @ 30mA, 3A | 350mV @ 300mA, 6A |
| Current - Collector Cutoff (Max) | 100nA | 100nA | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 250 @ 10mA, 2V | 200 @ 1A, 2V | 200 @ 1A, 2V |
| Power - Max | 690 mW | 690 mW | 690 mW |
| Frequency - Transition | 135MHz | 150MHz | 140MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3-UDFN Exposed Pad | 3-UDFN Exposed Pad | 3-UDFN Exposed Pad |
| Supplier Device Package | U-DFN2020-3 (Type B) | U-DFN2020-3 (Type B) | U-DFN2020-3 (Type B) |
