| Part Number | DXT2014P5-13 | DXT2010P5-13 | DXT2011P5-13 | DXT2012P5-13 | DXT2013P5-13 |
|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active |
| Transistor Type | PNP | NPN | NPN | PNP | PNP |
| Current - Collector (Ic) (Max) | 4 A | 6 A | 6 A | 5.5 A | 5 A |
| Voltage - Collector Emitter Breakdown (Max) | 140 V | 60 V | 100 V | 60 V | 100 V |
| Vce Saturation (Max) @ Ib, Ic | 360mV @ 300mA, 3A | 260mV @ 300mA, 6A | 220mV @ 500mA, 5A | 250mV @ 500mA, 5A | 340mV @ 400mA, 4A |
| Current - Collector Cutoff (Max) | 20nA (ICBO) | 20nA (ICBO) | 20nA (ICBO) | 20nA (ICBO) | 20nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1A, 5V | 100 @ 2A, 1V | 100 @ 2A, 2V | 100 @ 2A, 1V | 100 @ 1A, 1V |
| Power - Max | 3.2 W | 3.2 W | 3.2 W | 3.2 W | 3.2 W |
| Frequency - Transition | 120MHz | 130MHz | 130MHz | 120MHz | 125MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

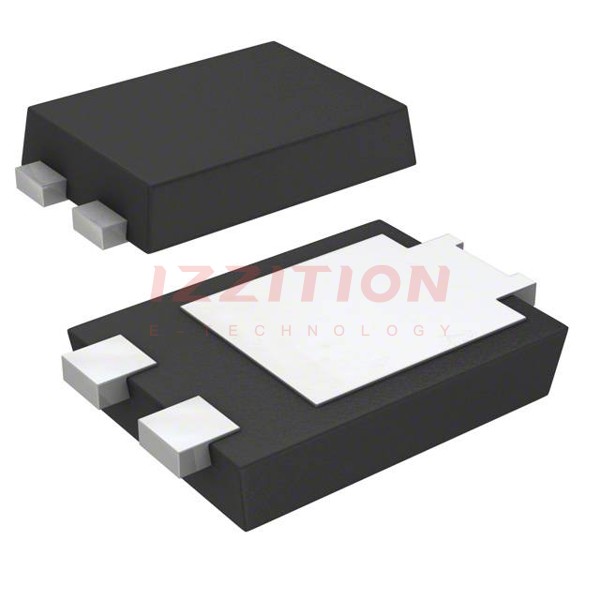

| Package / Case | PowerDI™ 5 | PowerDI™ 5 | PowerDI™ 5 | PowerDI™ 5 | PowerDI™ 5 |
| Supplier Device Package | PowerDI™ 5 | PowerDI™ 5 | PowerDI™ 5 | PowerDI™ 5 | PowerDI™ 5 |
