| Part Number | DTH8L06FP | DTH8S06FP | DTH8R06FP | DTH8E06FP |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V | 600 V |
| Current - Average Rectified (Io) | 8A | 8A | 8A | 8A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 8 A | 3.4 V @ 8 A | 2.9 V @ 8 A | 2.9 V @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 70 ns | 45 ns | 45 ns | 45 ns |
| Current - Reverse Leakage @ Vr | 8 µA @ 600 V | 30 µA @ 600 V | 30 µA @ 600 V | 30 µA @ 600 V |
| Capacitance @ Vr, F | - | 50pF @ 10V, 1MHz | 50pF @ 10V, 1MHz | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |

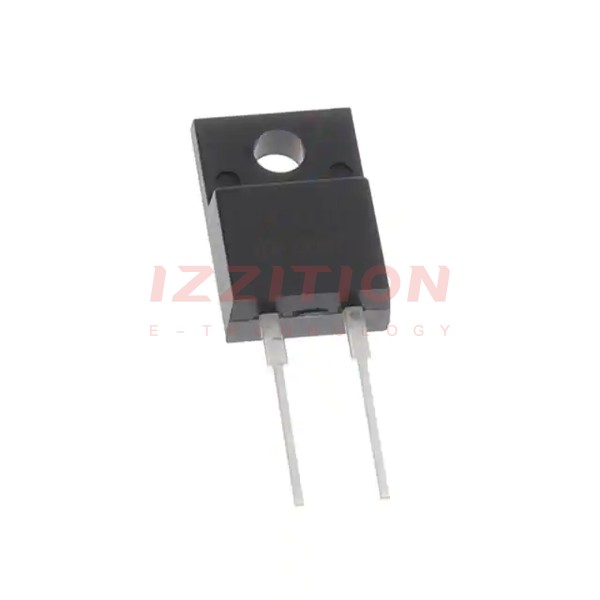

| Package / Case | TO-220-2 Full Pack, Isolated Tab | TO-220-2 Full Pack, Isolated Tab | TO-220-2 Full Pack, Isolated Tab | TO-220-2 Full Pack, Isolated Tab |
| Supplier Device Package | ITO-220AC (Type WX) | ITO-220AC (Type WX) | ITO-220AC (Type WX) | ITO-220AC (Type WX) |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 175°C |
