Diodes Incorporated-DTH810FP - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	1000 V
Current - Average Rectified (Io):	8A
Voltage - Forward (Vf) (Max) @ If:	2 V @ 8 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	85 ns
Current - Reverse Leakage @ Vr:	5 µA @ 1000 V
Capacitance @ Vr, F:	40pF @ 4V, 1MHz
Mounting Type:	Through Hole
Package / Case:	TO-220-2 Full Pack, Isolated Tab
Supplier Device Package:	ITO-220AC (Type WX)
Operating Temperature - Junction:	-55°C ~ 150°C

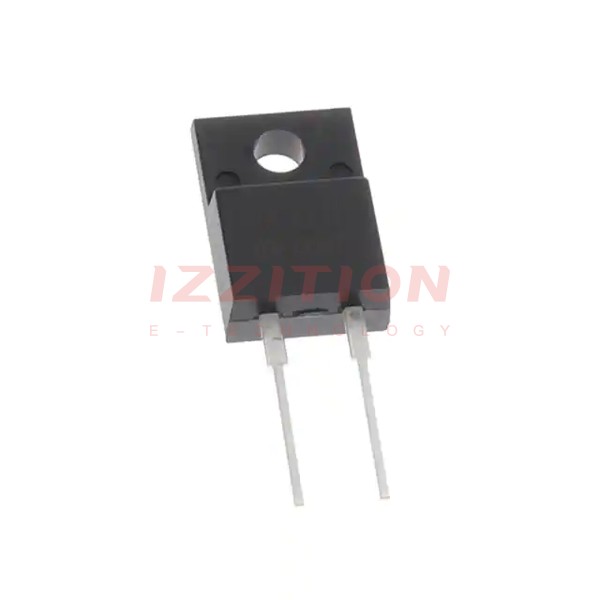

Diodes Incorporated DTH810FP
