Diodes Incorporated-DTH6007PT - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	-
Voltage - DC Reverse (Vr) (Max):	650 V
Current - Average Rectified (Io):	60A
Voltage - Forward (Vf) (Max) @ If:	2.4 V @ 60 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	60 ns
Current - Reverse Leakage @ Vr:	100 µA @ 650 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole

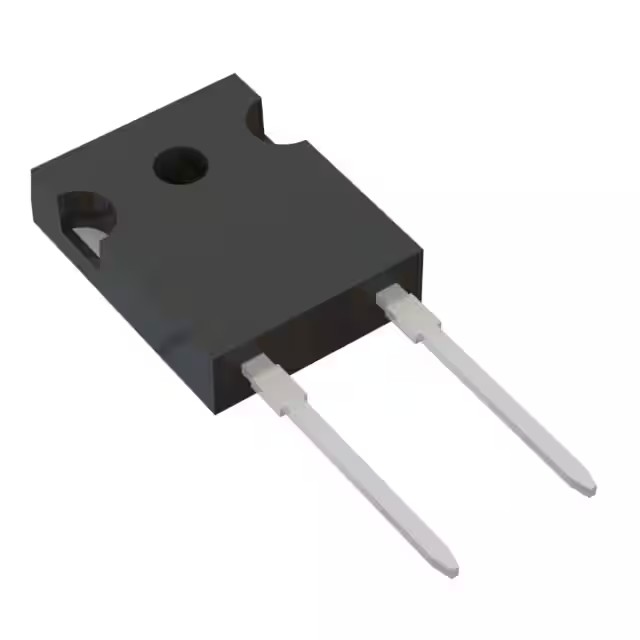

Package / Case:	TO-247-2
Supplier Device Package:	TO-247-2 (Type HE)
Operating Temperature - Junction:	-55°C ~ 175°C

Diodes Incorporated DTH6007PT
