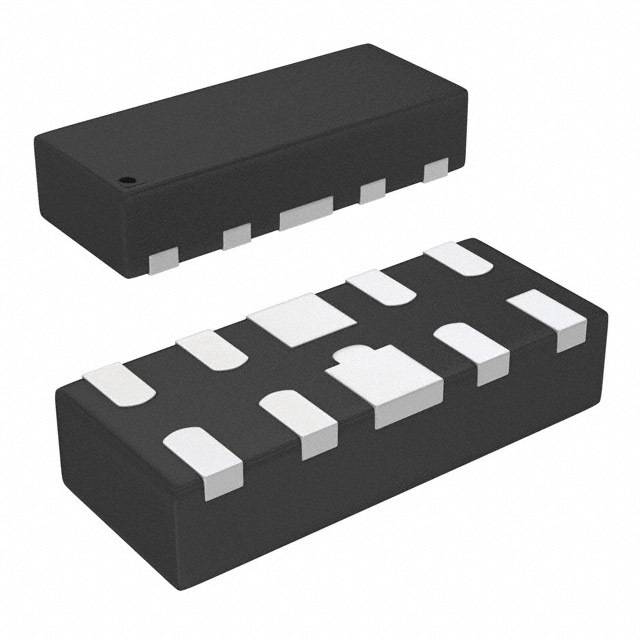

| Part Number | DT1240A-04LP-7 | DT1240E-04LP-7 | DT1240A-04LPQ-7 | DT1240-04LP-7 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active |
| Type | Steering (Rail to Rail) | Steering (Rail to Rail) | Steering (Rail to Rail) | Steering (Rail to Rail) |
| Unidirectional Channels | 4 | 4 | 4 | 4 |
| Bidirectional Channels | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) | 3.3V (Max) | 3.3V (Max) | 5.5V (Max) |
| Voltage - Breakdown (Min) | 5V | 5V | 5V | 6V |
| Voltage - Clamping (Max) @ Ipp | 9.5V | 9.5V | 9.5V | 11V |
| Current - Peak Pulse (10/1000µs) | 5.5A (8/20µs) | 5A (8/20µs) | 5.5A (8/20µs) | 5.5A (8/20µs) |
| Power - Peak Pulse | 52W | 47W | 52W | 60W |
| Power Line Protection | Yes | Yes | Yes | Yes |
| Applications | Automotive | Automotive | Automotive, DVI, HDMI, USB | Ethernet, HDMI |
| Capacitance @ Frequency | 0.55pF @ 1MHz | 0.55pF @ 1MHz | 0.55pF @ 1MHz | - |
| Operating Temperature | -55°C ~ 85°C (TA) | -55°C ~ 85°C (TA) | -55°C ~ 85°C | -55°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-UFDFN | 10-UFDFN | 10-UFDFN | 10-UFDFN |
| Supplier Device Package | U-DFN2510-10 | U-DFN2510-10 | U-DFN2510-10 | U-DFN2510-10 |
