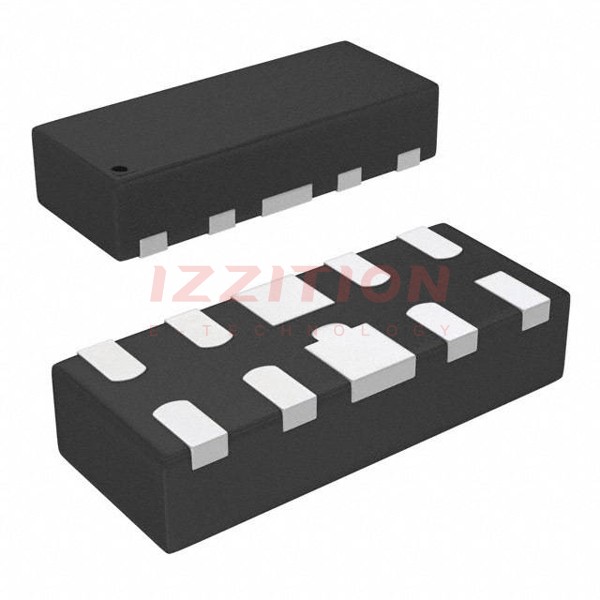

| Part Number | DT1140-04LP-7 | DT1240-04LP-7 | DT1140-04LPQ-7 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Type | Steering (Rail to Rail) | Steering (Rail to Rail) | Steering (Rail to Rail) |
| Unidirectional Channels | 4 | 4 | 4 |
| Bidirectional Channels | - | - | - |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) | 5.5V (Max) | 5.5V (Max) |
| Voltage - Breakdown (Min) | 6V | 6V | 6V |
| Voltage - Clamping (Max) @ Ipp | 10V | 11V | 10V |
| Current - Peak Pulse (10/1000µs) | 6A (8/20µs) | 5.5A (8/20µs) | 6A (8/20µs) |
| Power - Peak Pulse | 60W | 60W | 60W |
| Power Line Protection | Yes | Yes | No |
| Applications | Ethernet, HDMI | Ethernet, HDMI | Automotive, Ethernet, HDMI, USB |
| Capacitance @ Frequency | - | - | 0.5pF @ 1MHz |
| Operating Temperature | -55°C ~ 85°C (TA) | -55°C ~ 85°C (TA) | -55°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-UFDFN | 10-UFDFN | 10-UFDFN |
| Supplier Device Package | U-DFN2510-10 | U-DFN2510-10 | U-DFN2510-10 |
