Please send RFQ , we will respond immediately.

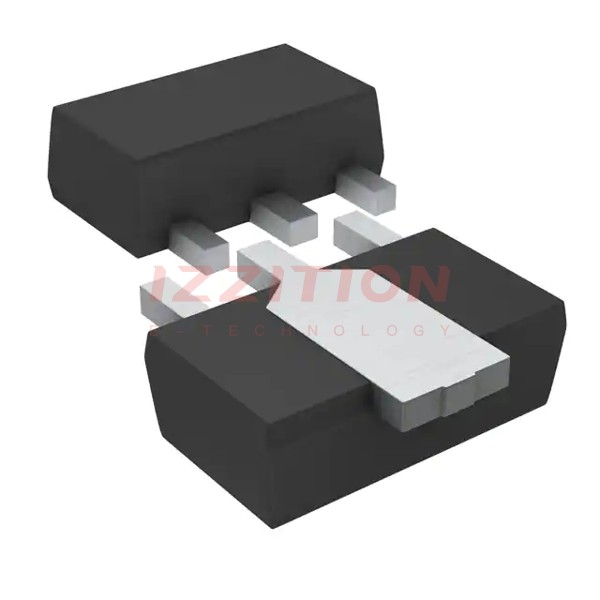

| Part Number | DSS60601MZ4Q-13 | DSS60600MZ4Q-13 | DSS60601MZ4-13 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Transistor Type | PNP | PNP | NPN |
| Current - Collector (Ic) (Max) | 700 mA | 6 A | 6 A |
| Voltage - Collector Emitter Breakdown (Max) | 120 V | 60 V | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 360mV @ 50mA, 500mA | 350mV @ 600mA, 6A | 300mV @ 600mA, 6A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 100mA, 5V | 150 @ 500mA, 2V | 120 @ 1A, 2V |
| Power - Max | 500 mW | 1.2 W | 1.2 W |
| Frequency - Transition | 300MHz | 100MHz | 100MHz |
| Operating Temperature | 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-243AA | TO-261-4, TO-261AA | TO-261-4, TO-261AA |
| Supplier Device Package | MPT3 | SOT-223-3 | SOT-223-3 |
