Diodes Incorporated-DSS5240V-7 - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	DSS5240V-7	DSS5240Y-7	DSS4240V-7	DSS5140V-7	DSS5220V-7	DSS5240T-7
Manufacturer	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Product Status	Active	Active	Active	Active	Active	Active
Transistor Type	PNP	PNP	NPN	PNP	PNP	PNP
Current - Collector (Ic) (Max)	1.8 A	2 A	2 A	1 A	2 A	2 A
Voltage - Collector Emitter Breakdown (Max)	40 V	40 V	40 V	40 V	20 V	40 V
Vce Saturation (Max) @ Ib, Ic	530mV @ 200mA, 2A	350mV @ 200mA, 2A	400mV @ 200mA, 2A	310mV @ 100mA, 1A	390mV @ 200mA, 2A	350mV @ 200mA, 2A
Current - Collector Cutoff (Max)	100nA	100nA (ICBO)	100nA	100nA	100nA	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	300 @ 100mA, 5V	210 @ 1A, 2V	300 @ 500mA, 5V	300 @ 100mA, 5V	155 @ 1A, 2V	210 @ 1A, 2V
Power - Max	600 mW	625 mW	600 mW	600 mW	600 mW	600 mW
Frequency - Transition	150MHz	220MHz	150MHz	150MHz	150MHz	100MHz
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	SOT-563, SOT-666	6-TSSOP, SC-88, SOT-363	SOT-563, SOT-666	SOT-563, SOT-666	SOT-563, SOT-666	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-563	SOT-363	SOT-563	SOT-563	SOT-563	SOT-23-3

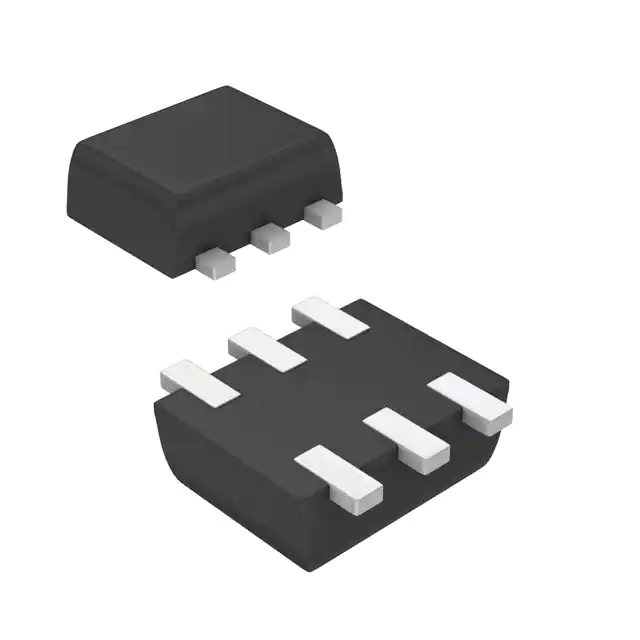

Diodes Incorporated DSS5240V-7

Transistor Type:	PNP
Current - Collector (Ic) (Max):	1.8 A
Voltage - Collector Emitter Breakdown (Max):	40 V
Vce Saturation (Max) @ Ib, Ic:	530mV @ 200mA, 2A
Current - Collector Cutoff (Max):	100nA
DC Current Gain (hFE) (Min) @ Ic, Vce:	300 @ 100mA, 5V
Power - Max:	600 mW
Frequency - Transition:	150MHz
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SOT-563, SOT-666
Supplier Device Package:	SOT-563
