Diodes Incorporated-DSR8U600-G - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	600 V
Current - Average Rectified (Io):	8A
Voltage - Forward (Vf) (Max) @ If:	2.5 V @ 8 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	28 ns
Current - Reverse Leakage @ Vr:	20 µA @ 600 V
Capacitance @ Vr, F:	55pF @ 4V, 1MHz
Mounting Type:	Through Hole

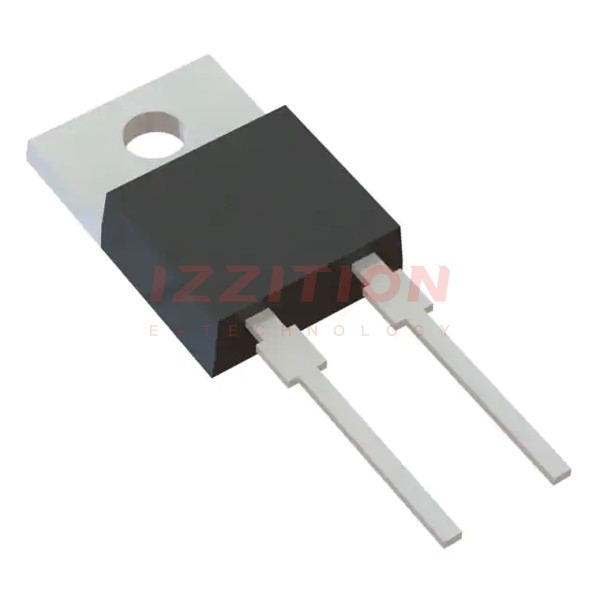

Package / Case:	TO-220-2
Supplier Device Package:	TO-220AC
Operating Temperature - Junction:	-65°C ~ 175°C

Diodes Incorporated DSR8U600-G
