Diodes Incorporated-DSR6U600D1 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	600 V
Current - Average Rectified (Io):	6A
Voltage - Forward (Vf) (Max) @ If:	2.6 V @ 6 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	45 ns
Current - Reverse Leakage @ Vr:	50 µA @ 600 V
Capacitance @ Vr, F:	30pF @ 4V, 1MHz
Mounting Type:	Surface Mount

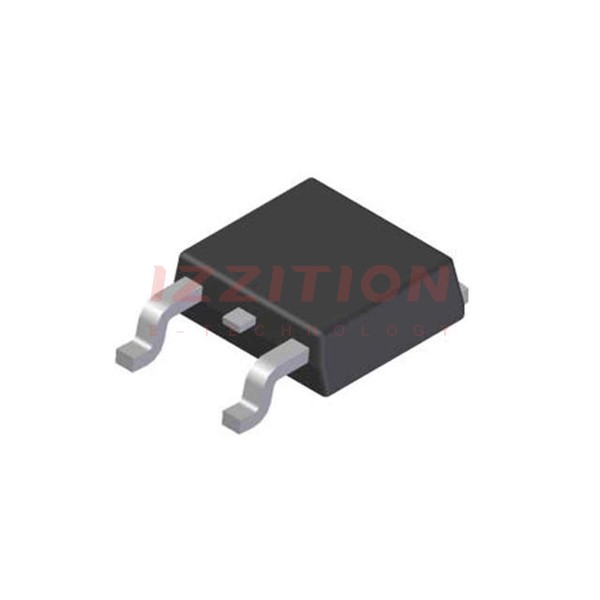

Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:	TO-252-3
Operating Temperature - Junction:	-65°C ~ 175°C

Diodes Incorporated DSR6U600D1
