| Part Number | DSR15U600-G | DSR15V600-G |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V |
| Current - Average Rectified (Io) | 15A | 15A |
| Voltage - Forward (Vf) (Max) @ If | 2.4 V @ 15 A | 3.2 V @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns | 30 ns |
| Current - Reverse Leakage @ Vr | 50 µA @ 600 V | 50 µA @ 600 V |
| Capacitance @ Vr, F | 80pF @ 4V, 1MHz | 80pF @ 4V, 1MHz |
| Mounting Type | Through Hole | Through Hole |

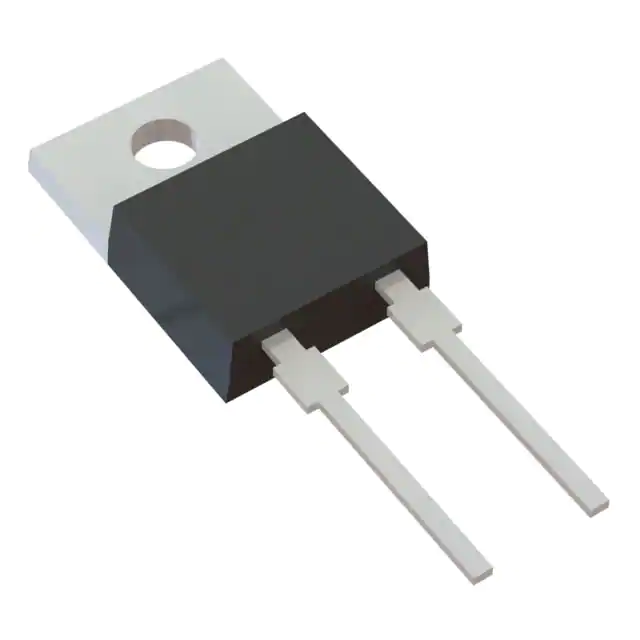

| Package / Case | TO-220-2 | TO-220-2 |
| Supplier Device Package | TO-220AC | TO-220AC |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C |
