Please send RFQ , we will respond immediately.

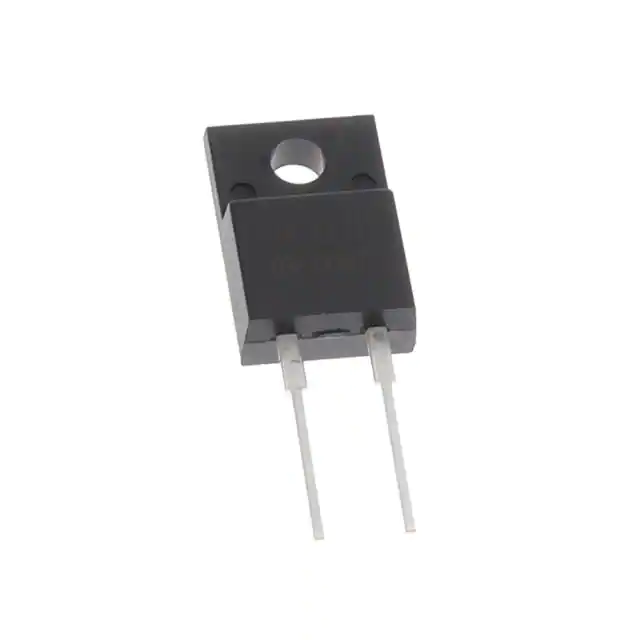

| Part Number | DSC04065FP | DSC06065FP | DSC08065FP |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Diode Type | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V | 650 V | 650 V |
| Current - Average Rectified (Io) | 4A | 6A | 8A |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 4 A | 1.7 V @ 6 A | 1.7 V @ 8 A |
| Speed | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns | 0 ns | 0 ns |
| Current - Reverse Leakage @ Vr | 170 µA @ 650 V | 200 µA @ 650 V | 230 µA @ 650 V |
| Capacitance @ Vr, F | 150pF @ 100mV, 1MHz | 266pF @ 100mV, 1MHz | 295pF @ 100mV, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-2 Full Pack, Isolated Tab | TO-220-2 Full Pack, Isolated Tab | TO-220-2 Full Pack, Isolated Tab |
| Supplier Device Package | ITO-220AC (Type WX) | ITO-220AC (Type WX) | ITO-220AC (Type WX) |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
