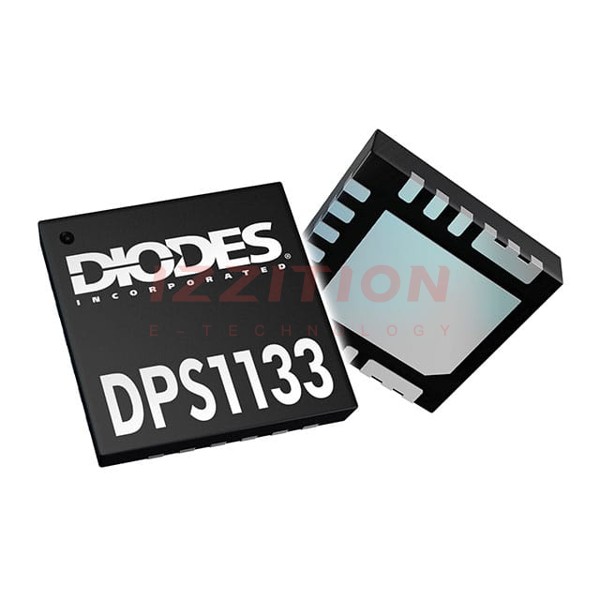

| Part Number | DPS1133FIA-13 | DPS1135FIA-13 | DPS1113FIA-13 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Switch Type | General Purpose | General Purpose | USB Switch |
| Number of Outputs | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side |
| Output Type | - | N-Channel | - |
| Interface | On/Off | On/Off | On/Off |
| Voltage - Load | 4.5V ~ 24V | 4.5V ~ 24V | 4.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | - |
| Current - Output (Max) | 3.5A | 5A | 3.5A |
| Rds On (Typ) | 30mOhm | 30mOhm | 29mOhm |
| Input Type | Non-Inverting | Non-Inverting | - |
| Features | Load Discharge | Load Discharge, Slew Rate Controlled, Status Flag | Load Discharge |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, UVLO | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, UVLO |
| Operating Temperature | - | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | V-QFN4040-17 | V-QFN4040-17 | V-QFN4040-17 |
| Package / Case | 17-VFQFN Exposed Pad | 17-VFQFN Exposed Pad | 17-VFQFN Exposed Pad |
