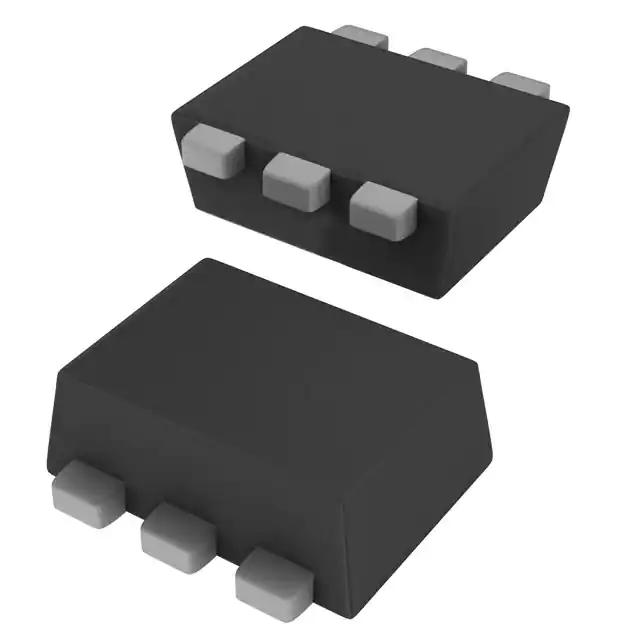

| Part Number | DN0150BDJ-7 | DP0150BDJ-7 | DN0150ADJ-7 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete |
| Transistor Type | 2 NPN (Dual) | 2 PNP (Dual) | 2 NPN (Dual) |
| Current - Collector (Ic) (Max) | 100mA | 100mA | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V | 50V | 50V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 10mA, 100mA | 300mV @ 10mA, 100mA | 250mV @ 10mA, 100mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2mA, 6V | 200 @ 2mA, 6V | 120 @ 2mA, 6V |
| Power - Max | 300mW | 300mW | 300mW |
| Frequency - Transition | 60MHz | 80MHz | 60MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-963 | SOT-963 | SOT-963 |
| Supplier Device Package | SOT-963 | SOT-963 | SOT-963 |
