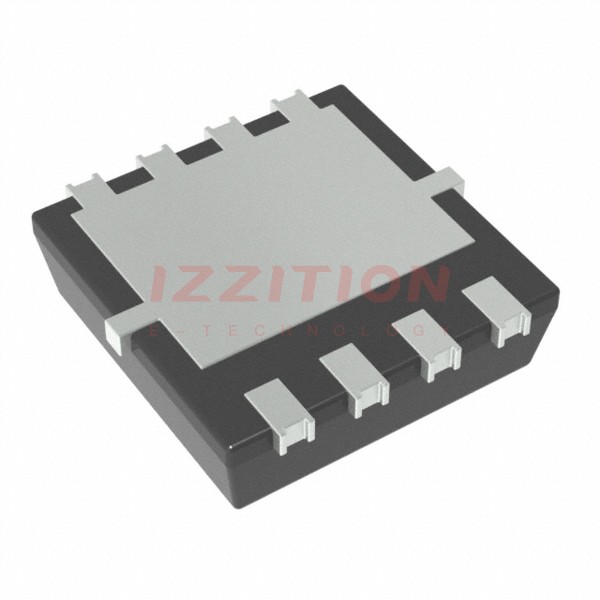

| Part Number | DMTH6016LFVWQ-7 | DMTH6016LFVW-7 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 41A (Tc) | 41A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 16mOhm @ 20A, 10V | 16mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 15.1 nC @ 10 V | 15.1 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 939 pF @ 30 V | 939 pF @ 30 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 1.17W (Ta) | 1.2W (Ta) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |
| Supplier Device Package | PowerDI3333-8 (SWP) Type UX | PowerDI3333-8 (SWP) Type UX |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN |
