| Part Number | DMTH4008LFDFW-13 | DMTH4008LFDFWQ-13 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 11.6A (Ta) | 11.6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 11.5mOhm @ 10A, 10V | 11.5mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 14.2 nC @ 10 V | 14.2 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1030 pF @ 20 V | 1030 pF @ 20 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 990mW (Ta) | 990mW (Ta) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

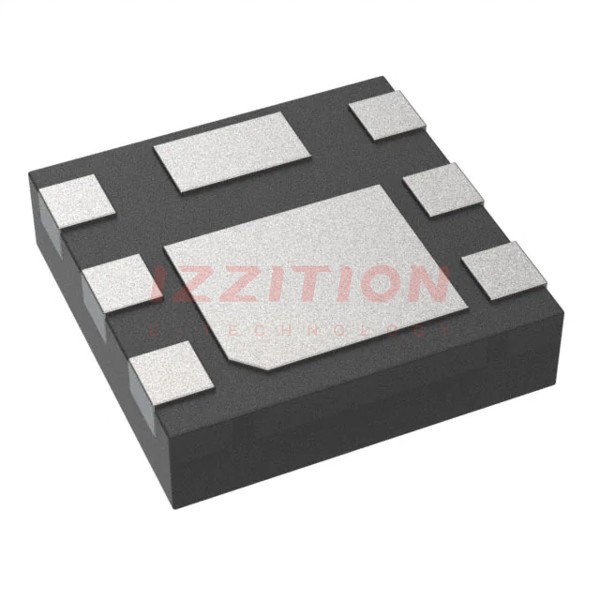

| Supplier Device Package | U-DFN2020-6 (SWP) (Type F) | U-DFN2020-6 (SWP) (Type F) |
| Package / Case | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad |
