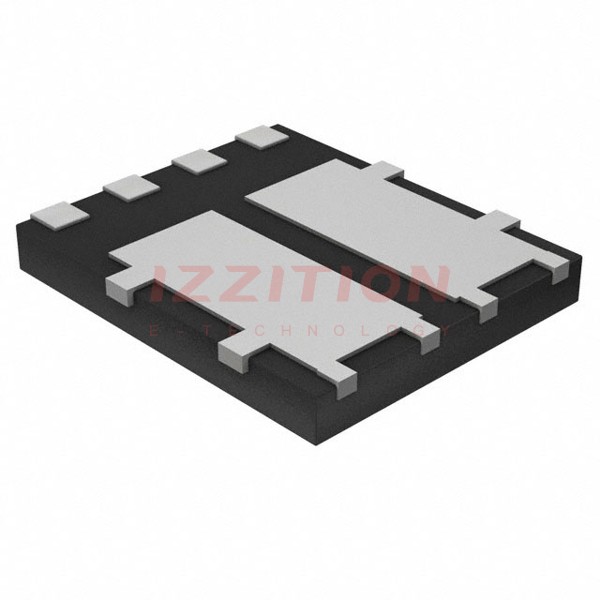

| Part Number | DMTH4007SPDQ-13 | DMTH4007SPD-13 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Standard | Standard |
| Drain to Source Voltage (Vdss) | 40V | 40V |
| Current - Continuous Drain (Id) @ 25°C | 14.2A | 14.2A |
| Rds On (Max) @ Id, Vgs | 8.6mOhm @ 17A, 10V | 8.6mOhm @ 17A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 41.9nC @ 10V | 41.9nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 2026pF @ 30V | 2026pF @ 30V |
| Power - Max | 2.6W | 2.6W |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN |
| Supplier Device Package | PowerDI5060-8 | PowerDI5060-8 |
