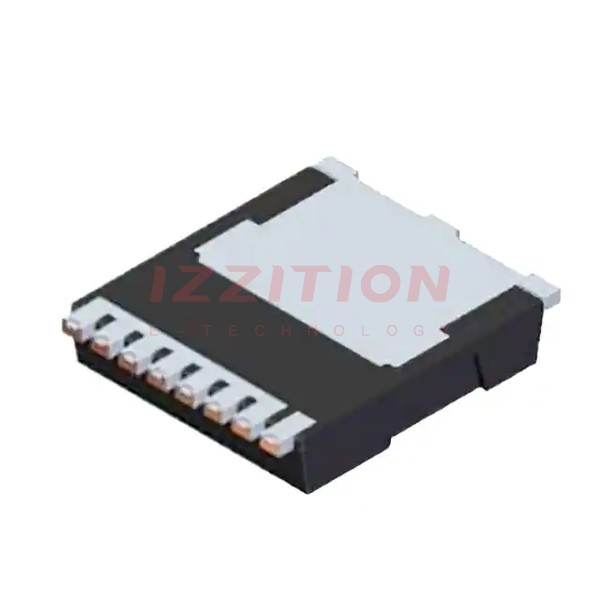

| Part Number | DMTH10H1M7STLWQ-13 | DMTH10H1M7STLW-13 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 250A (Tc) | 250A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 2mOhm @ 30A, 10V | 2mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 147 nC @ 10 V | 147 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 9871 pF @ 50 V | 9871 pF @ 50 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 6W (Ta), 250W (Tc) | 6W (Ta), 250W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | POWERDI1012-8 | POWERDI1012-8 |
| Package / Case | 8-PowerSFN | 8-PowerSFN |
