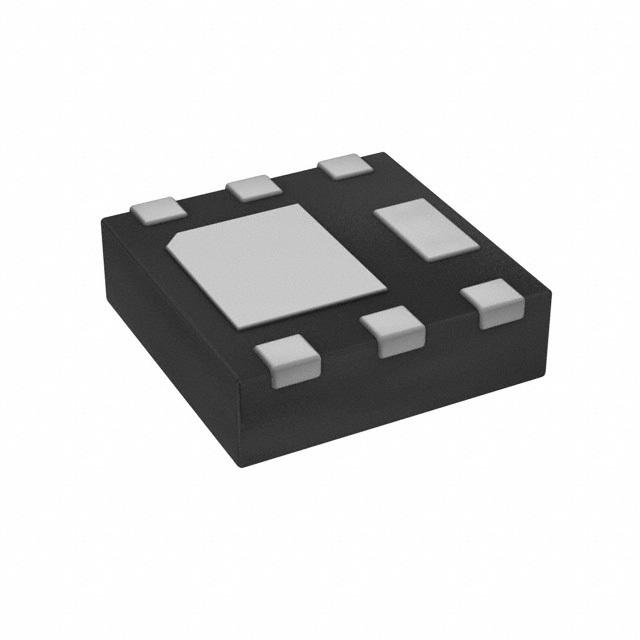

| Part Number | DMT6013LFDF-13 | DMT6017LFDF-13 | DMT6016LFDF-13 | DMT6012LFDF-13 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 65 V | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta) | 8.1A (Ta) | 8.9A (Ta) | 9.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 15mOhm @ 8.5A, 10V | 18mOhm @ 6A, 10V | 16mOhm @ 10A, 10V | 14mOhm @ 8.5A, 10V |
| Vgs(th) (Max) @ Id | 2.3V @ 250µA | 2.3V @ 250µA | 3V @ 250µA | 2.3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 15 nC @ 10 V | 15.3 nC @ 10 V | 17 nC @ 10 V | 13.6 nC @ 10 V |
| Vgs (Max) | ±20V | ±16V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1081 pF @ 30 V | 891 pF @ 30 V | 864 pF @ 30 V | 785 pF @ 30 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 900mW (Ta) | 800mW (Ta) | 820mW (Ta) | 900mW (Ta), 11W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | U-DFN2020-6 (Type F) | U-DFN2020-6 (Type F) | U-DFN2020-6 (Type F) | U-DFN2020-6 (Type F) |
| Package / Case | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad |
