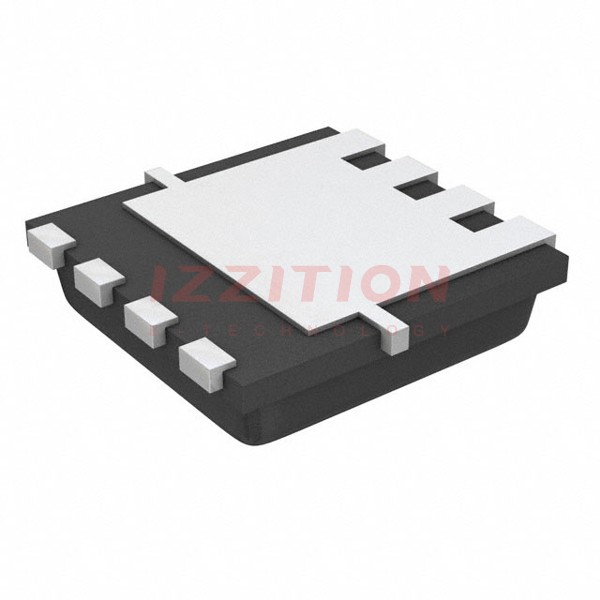

| Part Number | DMT6012LFV-13 | DMT6015LFV-13 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 43.3A (Tc) | 9.5A (Ta), 35A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 12mOhm @ 20A, 10V | 16mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 22.2 nC @ 10 V | 18.9 nC @ 10 V |
| Vgs (Max) | ±20V | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 1522 pF @ 30 V | 1103 pF @ 30 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 1.95W (Ta), 33.78W (Tc) | 2.2W (Ta), 30W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PowerDI3333-8 (Type UX) | PowerDI3333-8 (Type UX) |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN |
