Diodes Incorporated-DMT4008LSS-13 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	12.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	8.5mOhm @ 12A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	18.6 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1143 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	1.32W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-SOP
Package / Case:	8-SOIC (0.154", 3.90mm Width)

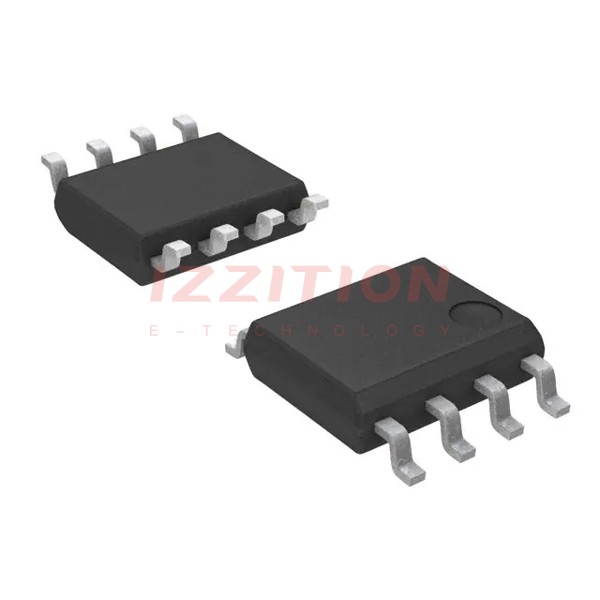

Diodes Incorporated DMT4008LSS-13
