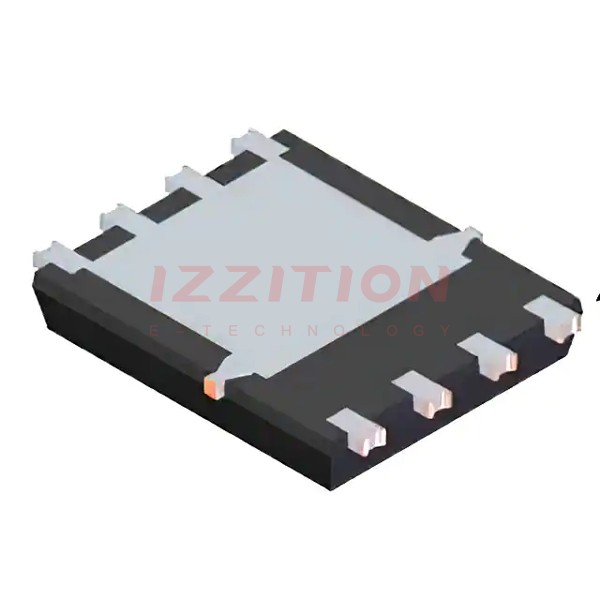

| Part Number | DMT32M5LPSW-13 | DMT32M4LPSW-13 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2mOhm @ 30A, 10V | 1.7mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 1mA | 3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 68 nC @ 10 V | 68 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4389 pF @ 15 V | 3944 pF @ 15 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 3.2W (Ta), 100W (Tc) | 2.3W (Ta), 83W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |
| Supplier Device Package | PowerDI5060-8 (Type UX) | PowerDI5060-8 (Type UX) |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN |
