| Part Number | DMT3020LFDBQ-7 | DMT3020LFDB-7 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | - | Standard |
| Drain to Source Voltage (Vdss) | 30V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 7.7A (Ta) | 7.7A |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 9A, 10V | 20mOhm @ 9A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 7nC @ 10V | 7nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 393pF @ 15V | 393pF @ 15V |
| Power - Max | 700mW | 700mW |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

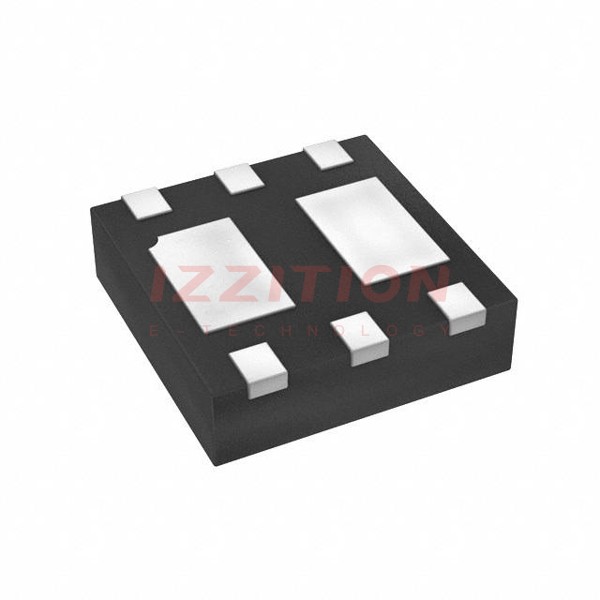

| Package / Case | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad |
| Supplier Device Package | U-DFN2020-6 (Type B) | U-DFN2020-6 (Type B) |
