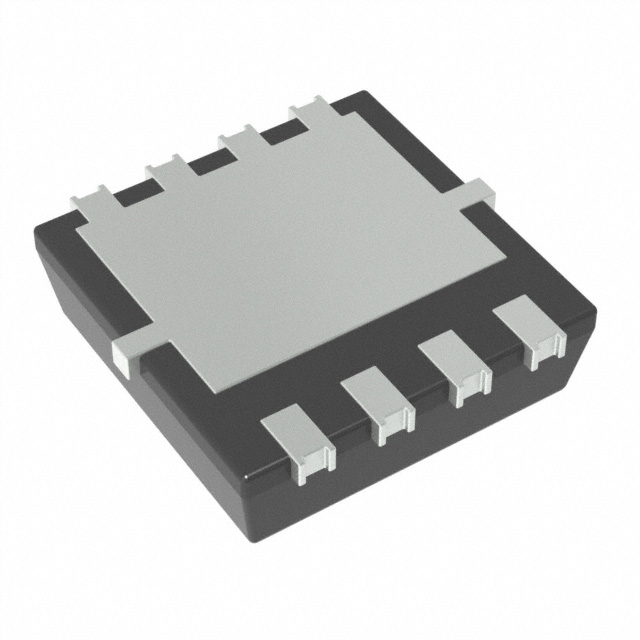

| Part Number | DMT3009LFVWQ-7 | DMT3009LFVW-7 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta), 50A (Tc) | 12A (Ta), 50A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 3.8V, 10V | 3.8V, 10V |
| Rds On (Max) @ Id, Vgs | 11mOhm @ 14.4A, 10V | 11mOhm @ 14.4A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 12 nC @ 10 V | 12 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 823 pF @ 15 V | 823 pF @ 15 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 2.3W (Ta), 35.7W (Tc) | 2.3W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |
| Supplier Device Package | PowerDI3333-8 (SWP) Type UX | PowerDI3333-8 (SWP) Type UX |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN |
