Diodes Incorporated-DMT2004UFDF-7 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	24 V
Current - Continuous Drain (Id) @ 25°C:	14.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 10V
Rds On (Max) @ Id, Vgs:	6mOhm @ 9A, 10V
Vgs(th) (Max) @ Id:	1.45V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	53.7 nC @ 10 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	1683 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	800mW (Ta), 12.5W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	U-DFN2020-6 (Type F)
Package / Case:	6-UDFN Exposed Pad

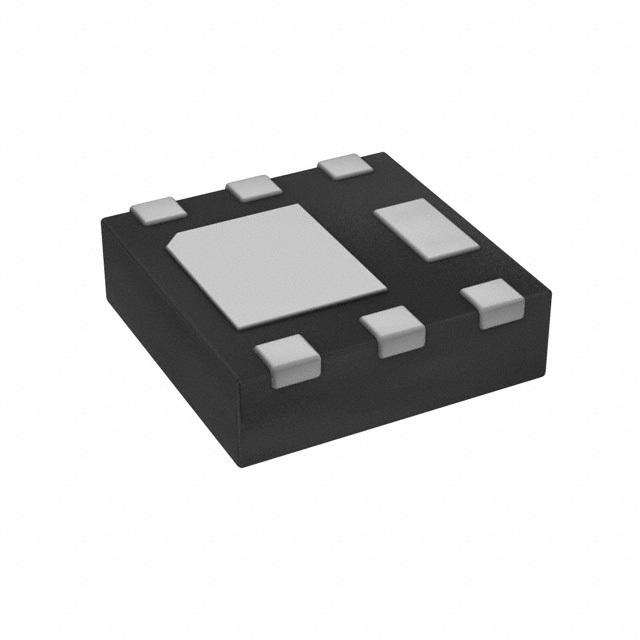

Diodes Incorporated DMT2004UFDF-7
