Diodes Incorporated-DMT12H065LFDF-13 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	115 V
Current - Continuous Drain (Id) @ 25°C:	4.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	3V, 10V
Rds On (Max) @ Id, Vgs:	65mOhm @ 3A, 10V
Vgs(th) (Max) @ Id:	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	5.5 nC @ 10 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	252 pF @ 50 V
FET Feature:	-
Power Dissipation (Max):	1W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	U-DFN2020-6 (Type F)
Package / Case:	6-UDFN Exposed Pad

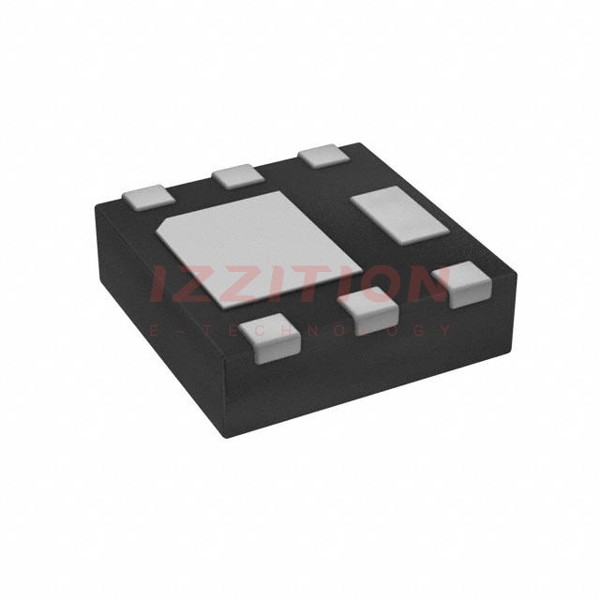

Diodes Incorporated DMT12H065LFDF-13
