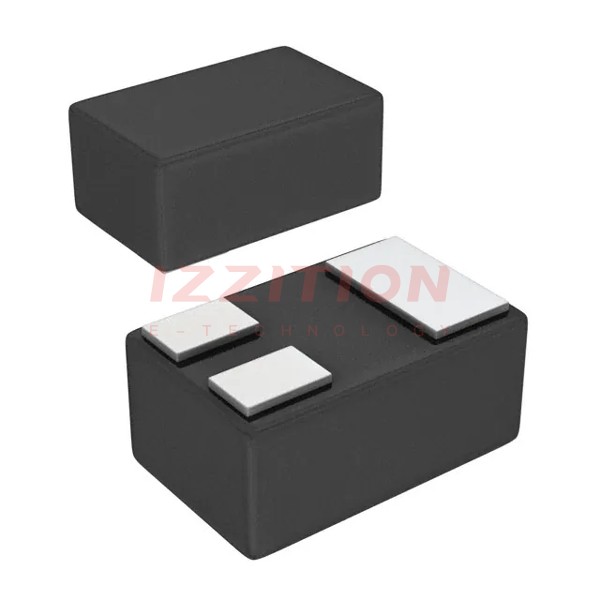

| Part Number | DMP56D0UFB-7 | DMP56D0UFB-7B |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 50 V | 50 V |
| Current - Continuous Drain (Id) @ 25°C | 200mA (Ta) | 200mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4V | 2.5V, 4V |
| Rds On (Max) @ Id, Vgs | 6Ohm @ 100mA, 4V | 6Ohm @ 100mA, 4V |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA | 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.58 nC @ 4 V | 0.58 nC @ 4 V |
| Vgs (Max) | ±8V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 50.54 pF @ 25 V | 50.54 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 425mW (Ta) | 425mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | X1-DFN1006-3 | X1-DFN1006-3 |
| Package / Case | 3-UFDFN | 3-UFDFN |
