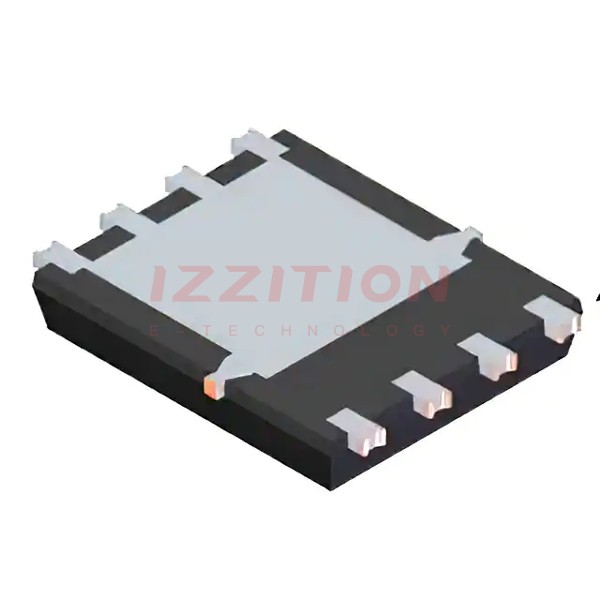

| Part Number | DMP4006SPSWQ-13 | DMP4006SPSW-13 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 115A (Tc) | 115A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 5.2mOhm @ 9.8A, 10V | 5.2mOhm @ 9.8A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 162 nC @ 10 V | 162 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6855 pF @ 20 V | 6855 pF @ 20 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 3.4W (Ta), 104W (Tc) | 3.4W (Ta), 104W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |
| Supplier Device Package | PowerDI5060-8 (Type UX) | PowerDI5060-8 (Type UX) |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN |
