Diodes Incorporated-DMP3028LFDE-7 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	6.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	32mOhm @ 7A, 10V
Vgs(th) (Max) @ Id:	2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	22 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1241 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	660mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	U-DFN2020-6 (Type E)
Package / Case:	6-PowerUDFN

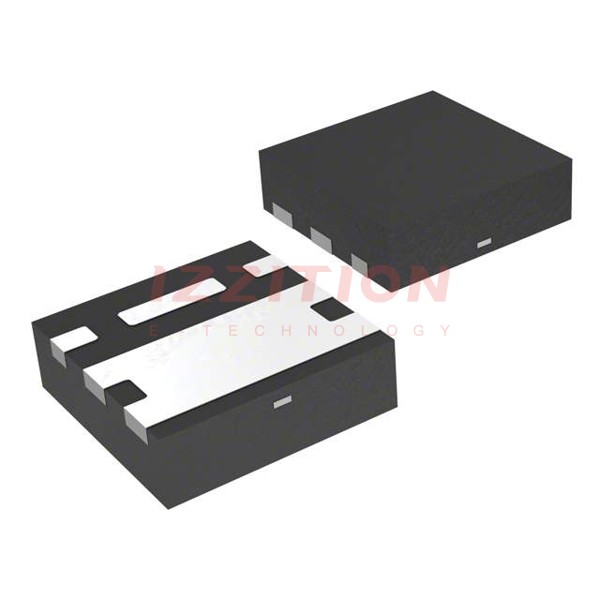

Diodes Incorporated DMP3028LFDE-7
