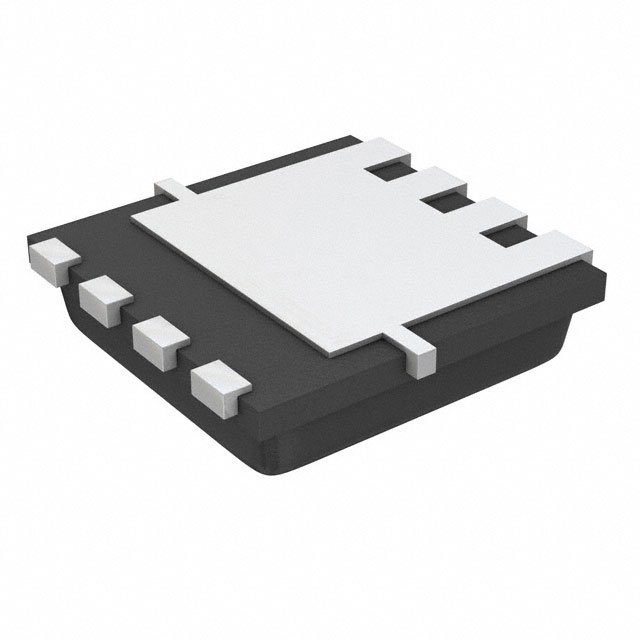

| Part Number | DMP3013SFV-13 | DMP3018SFV-13 | DMP3013SFK-13 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| FET Type | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta), 35A (Tc) | 11A (Ta), 35A (Tc) | 10.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 9.5mOhm @ 11.5A, 10V | 12mOhm @ 11.5A, 10V | 14mOhm @ 9.5A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | 3V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 33.7 nC @ 10 V | 51 nC @ 10 V | 33.7 nC @ 10 V |
| Vgs (Max) | ±25V | ±25V | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 1674 pF @ 15 V | 2147 pF @ 15 V | 1674 pF @ 15 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 940mW (Ta) | 1W (Ta) | 1W (Ta), 19.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PowerDI3333-8 (Type UX) | PowerDI3333-8 (Type UX) | U-DFN2523-6 |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN | 6-PowerUDFN |
