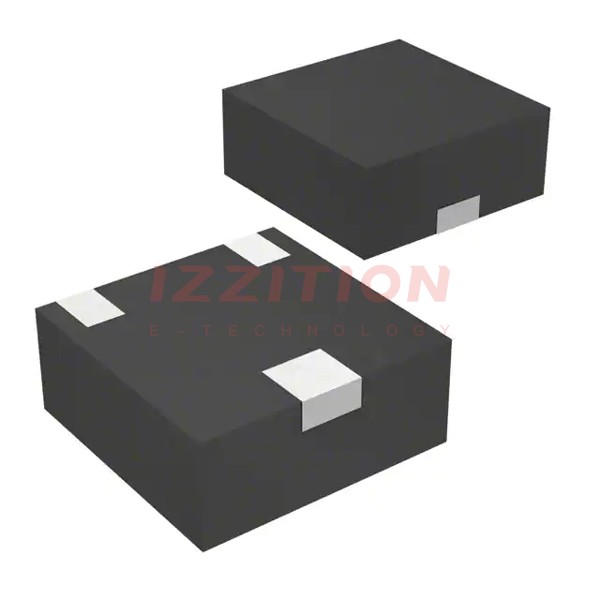

| Part Number | DMP21D6UFD-7 | DMP21D0UFD-7 | DMP21D5UFD-7 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Obsolete |
| FET Type | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 600mA (Ta) | 820mA (Ta) | 600mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.2V, 4.5V | 1.5V, 4.5V | 1.2V, 4.5V |
| Rds On (Max) @ Id, Vgs | 1Ohm @ 100mA, 4.5V | 495mOhm @ 800mA, 4.5V | 1Ohm @ 100mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1.2V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.8 nC @ 8 V | 3 nC @ 4.5 V | 0.8 nC @ 8 V |
| Vgs (Max) | ±8V | ±8V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 46.1 pF @ 10 V | 80 pF @ 10 V | 46.1 pF @ 10 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 400mW | 490mW (Ta) | 400mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | X1-DFN1212-3 | X1-DFN1212-3 | X1-DFN1212-3 |
| Package / Case | 3-UDFN | 3-UDFN | 3-UDFN |
