Diodes Incorporated-DMP2110UFDBQ-7 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 4.5V
Rds On (Max) @ Id, Vgs:	80mOhm @ 2.8A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	6 nC @ 4.5 V
Vgs (Max):	±10V
Input Capacitance (Ciss) (Max) @ Vds:	443 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	800mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	U-DFN2020-6 (Type B)
Package / Case:	6-UDFN Exposed Pad

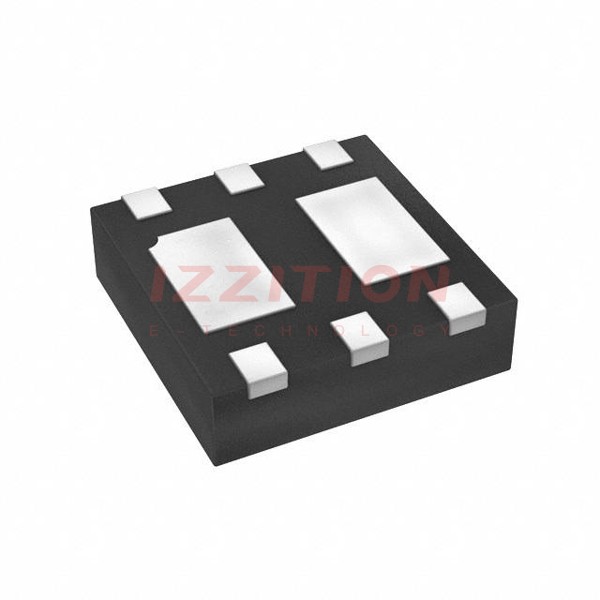

Diodes Incorporated DMP2110UFDBQ-7
