| Part Number | DMP2110UFDBQ-13 | DMP2110UFDB-13 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | 2 P-Channel (Dual) | 2 P-Channel (Dual) |
| FET Feature | Standard | Standard |
| Drain to Source Voltage (Vdss) | 20V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 3.2A (Ta) | 3.2A (Ta) |
| Rds On (Max) @ Id, Vgs | 75mOhm @ 2.8A, 4.5V | 75mOhm @ 2.8A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 12.7nC @ 8V | 12.7nC @ 8V |
| Input Capacitance (Ciss) (Max) @ Vds | 443pF @ 10V | 443pF @ 10V |
| Power - Max | 820mW (Ta) | 820mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

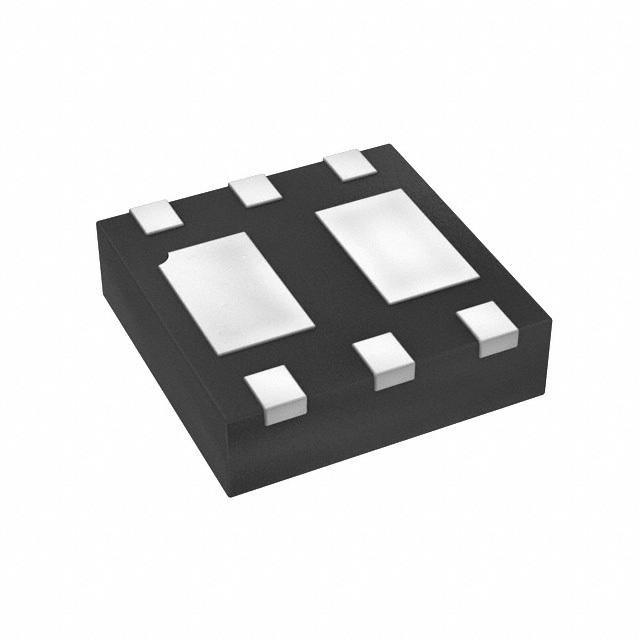

| Package / Case | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad |
| Supplier Device Package | U-DFN2020-6 (Type B) | U-DFN2020-6 (Type B) |
