Diodes Incorporated-DMP2088LCP3-7 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	2.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 8V
Rds On (Max) @ Id, Vgs:	88mOhm @ 500mA, 8V
Vgs(th) (Max) @ Id:	1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	1.5 nC @ 4.5 V
Vgs (Max):	-12V
Input Capacitance (Ciss) (Max) @ Vds:	160 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	1.13W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

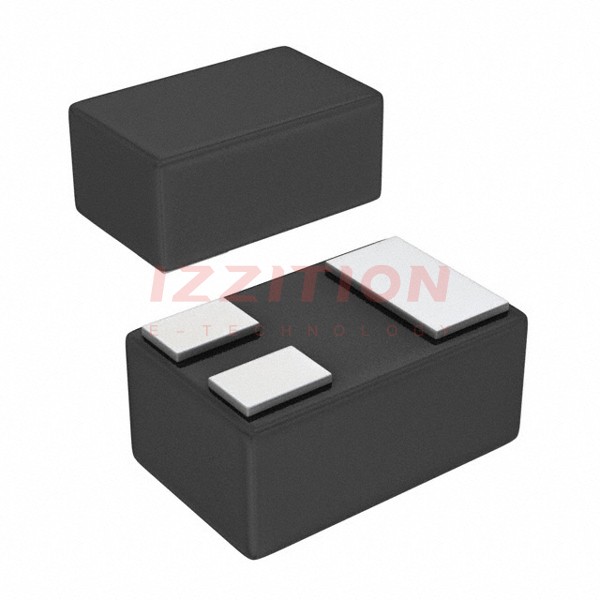

Supplier Device Package:	X2-DSN1006-3
Package / Case:	3-XFDFN

Diodes Incorporated DMP2088LCP3-7
