| Part Number | DMP2040UND-13 | DMP2040USD-13 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | 2 P-Channel (Dual) | 2 P-Channel (Dual) |
| FET Feature | Standard | Standard |
| Drain to Source Voltage (Vdss) | 20V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 5.3A (Ta), 13.6A (Tc) | 6.5A (Ta), 12A (Tc) |
| Rds On (Max) @ Id, Vgs | 36mOhm @ 8.9A, 4.5V | 33mOhm @ 8.9A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 20nC @ 10V | 19nC @ 8V |
| Input Capacitance (Ciss) (Max) @ Vds | 834pF @ 10V | 834pF @ 10V |
| Power - Max | 900mW (Ta) | 1.1W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

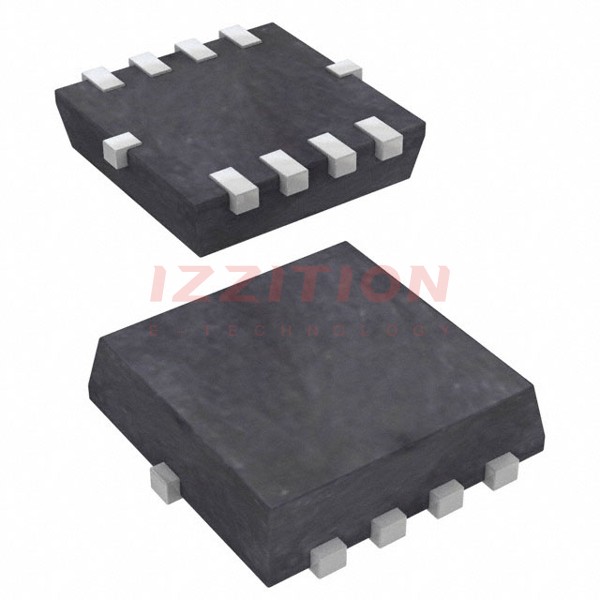

| Package / Case | 8-PowerVDFN | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | PowerDI3333-8 (Type UXB) | 8-SO |
