Diodes Incorporated-DMP2033UCB9-7 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	4.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 4.5V
Rds On (Max) @ Id, Vgs:	33mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id:	1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	7 nC @ 4.5 V
Vgs (Max):	-6V
Input Capacitance (Ciss) (Max) @ Vds:	500 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	1W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	U-WLB1515-9
Package / Case:	9-UFBGA, WLBGA

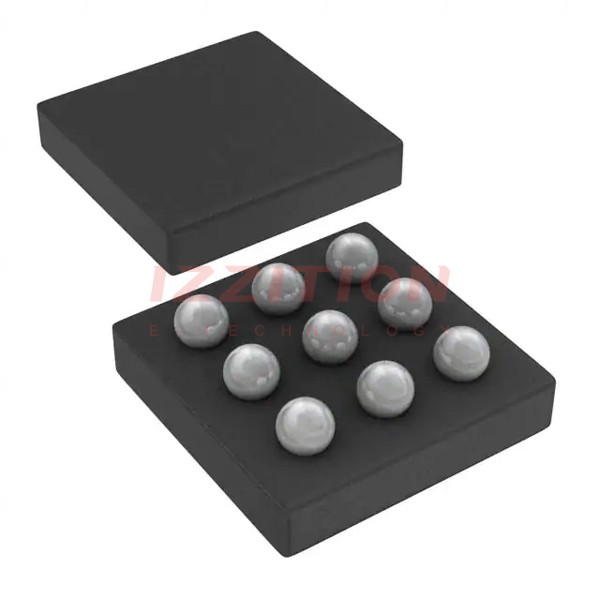

Diodes Incorporated DMP2033UCB9-7
