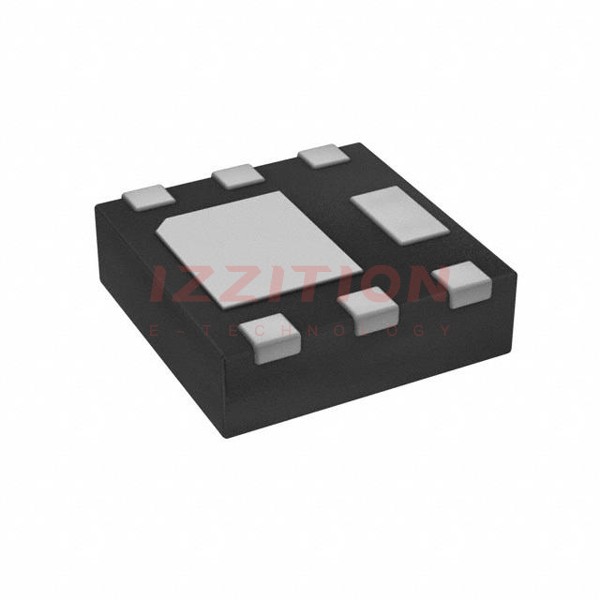

| Part Number | DMP2021UFDF-13 | DMP2023UFDF-13 | DMP2021UFDE-13 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| FET Type | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Ta) | 7.6A (Ta) | 11.1A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V | 1.5V, 4.5V | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 16mOhm @ 7A, 4.5V | 27mOhm @ 7A, 4.5V | 16mOhm @ 7A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 59 nC @ 8 V | 27 nC @ 4.5 V | 59 nC @ 8 V |
| Vgs (Max) | ±8V | ±8V | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 2760 pF @ 15 V | 1837 pF @ 15 V | 2760 pF @ 15 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 730mW (Ta) | 730mW (Ta) | 1.9W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | U-DFN2020-6 (Type F) | U-DFN2020-6 (Type F) | U-DFN2020-6 (Type E) |
| Package / Case | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad | 6-PowerUDFN |
