Diodes Incorporated-DMP1245UFCL-7 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	12 V
Current - Continuous Drain (Id) @ 25°C:	6.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.5V, 4.5V
Rds On (Max) @ Id, Vgs:	29mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id:	950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	26.1 nC @ 8 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	1357.4 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	613mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	X1-DFN1616-6 (Type E)
Package / Case:	6-PowerUFDFN

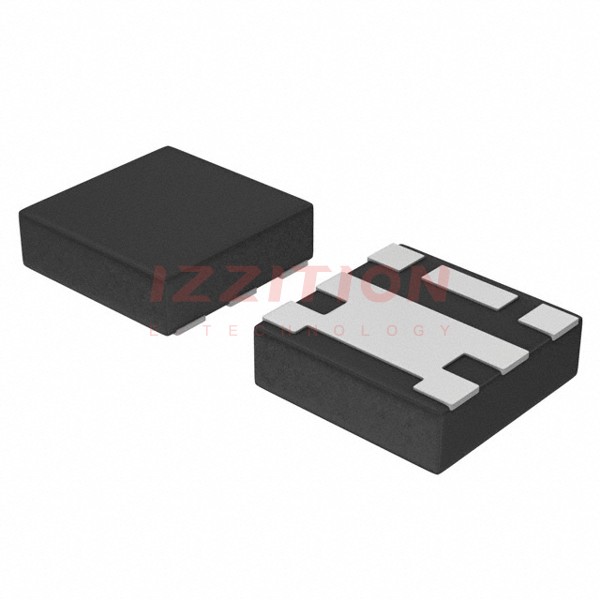

Diodes Incorporated DMP1245UFCL-7
