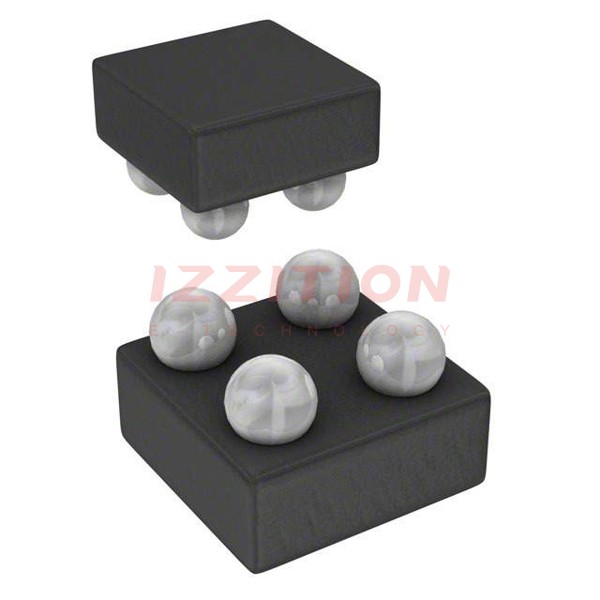

| Part Number | DMP1080UCB4-7 | DMP1081UCB4-7 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete |
| FET Type | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 3.3A (Ta) | 3A (Ta), 3.3A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V | 0.9V, 4.5V |
| Rds On (Max) @ Id, Vgs | 80mOhm @ 500mA, 4.5V | 10Ohm @ 100mA, 0.9V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 650mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 5 nC @ 4.5 V | 5 nC @ 4.5 V |
| Vgs (Max) | -6V | -6V |
| Input Capacitance (Ciss) (Max) @ Vds | 350 pF @ 6 V | 350 pF @ 6 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 820mW (Ta) | 820mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | U-WLB1010-4 | U-WLB1010-4 |
| Package / Case | 4-UFBGA, WLBGA | 4-UFBGA, WLBGA |
