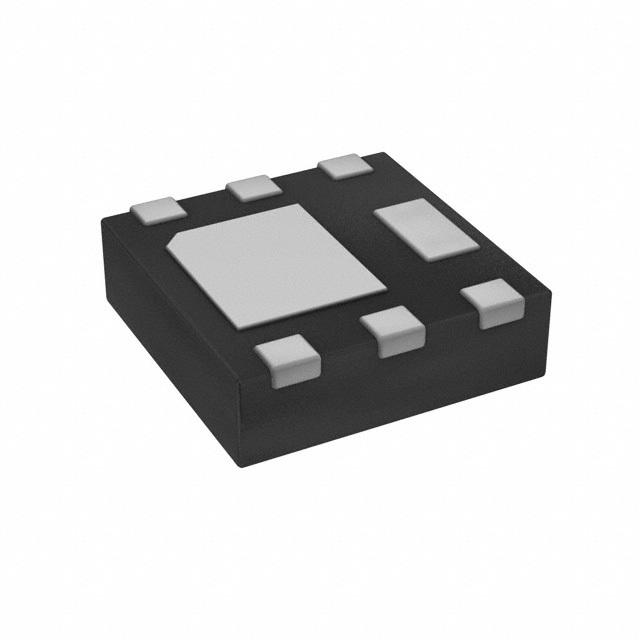

| Part Number | DMP1022UFDF-7 | DMP1012UFDF-7 | DMP1022UFDE-7 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Obsolete |
| FET Type | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V | 12 V | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 9.5A (Ta) | 12.6A (Ta), 20A (Tc) | 9.1A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V | 1.8V, 4.5V | 1.2V, 4.5V |
| Rds On (Max) @ Id, Vgs | 15.3mOhm @ 4A, 4.5V | 15mOhm @ 5A, 4.5V | 16mOhm @ 8.2A, 4.5V |
| Vgs(th) (Max) @ Id | 800mV @ 250µA | 900mV @ 250µA | 800mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 48.3 nC @ 8 V | 31 nC @ 8 V | 42.6 nC @ 5 V |
| Vgs (Max) | ±8V | ±8V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 2712 pF @ 10 V | 1344 pF @ 10 V | 2953 pF @ 4 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 730mW (Ta) | 720mW (Ta) | 660mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | U-DFN2020-6 (Type F) | U-DFN2020-6 (Type F) | U-DFN2020-6 (Type E) |
| Package / Case | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad | 6-PowerUDFN |
