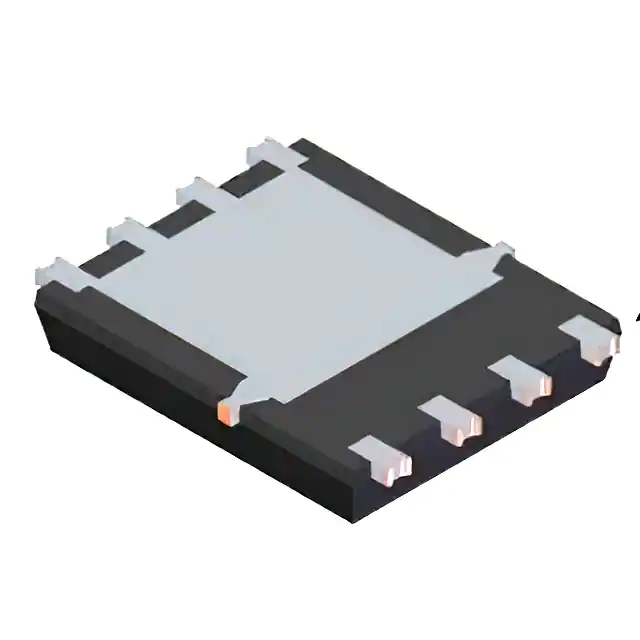

| Part Number | DMNH6021SPSWQ-13 | DMNH6021SPSW-13 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 44A (Tc) | 44A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 23mOhm @ 12A, 10V | 23mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 20.1 nC @ 10 V | 20.1 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1132 pF @ 30 V | 1132 pF @ 30 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 1.6W | 1.6W |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |
| Supplier Device Package | PowerDI5060-8 (Type UX) | PowerDI5060-8 (Type UX) |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN |
