Diodes Incorporated-DMN62D1LFD-13 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	400mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 4V
Rds On (Max) @ Id, Vgs:	2Ohm @ 100mA, 4V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	0.55 nC @ 4.5 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	36 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	500mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	X1-DFN1212-3
Package / Case:	3-UDFN

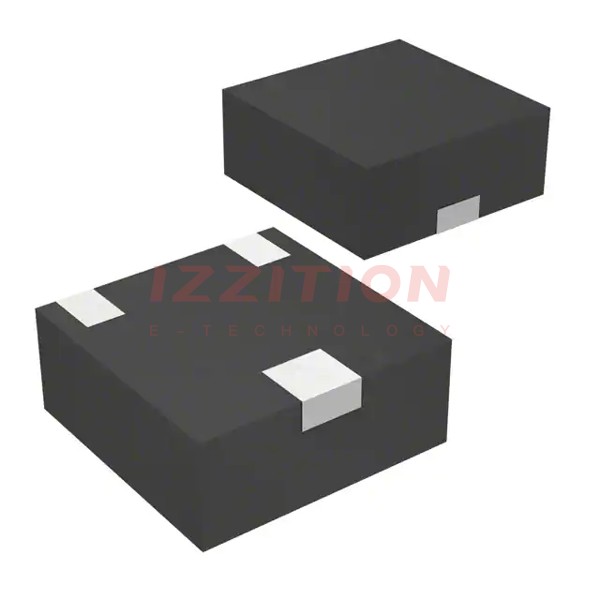

Diodes Incorporated DMN62D1LFD-13
