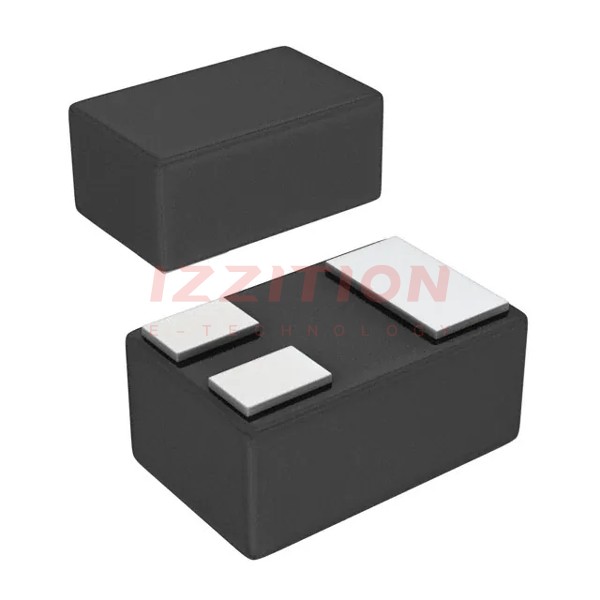

| Part Number | DMN62D0LFB-7 | DMN62D0LFD-7 | DMN62D0LFB-7B |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) | 310mA (Ta) | 100mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4V | 1.8V, 4V | - |
| Rds On (Max) @ Id, Vgs | 2Ohm @ 100mA, 4V | 2Ohm @ 100mA, 4V | 2Ohm @ 100mA, 4V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.45 nC @ 4.5 V | 0.5 nC @ 4.5 V | 0.45 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±20V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 32 pF @ 25 V | 31 pF @ 25 V | 32 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 470mW (Ta) | 480mW (Ta) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | X1-DFN1006-3 | X1-DFN1212-3 | X1-DFN1006-3 |
| Package / Case | 3-UFDFN | 3-UDFN | 3-UFDFN |
