Diodes Incorporated-DMN6070SFCL-7 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4V, 10V
Rds On (Max) @ Id, Vgs:	85mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	12.3 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	606 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	600mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	X1-DFN1616-6 (Type E)
Package / Case:	6-PowerUFDFN

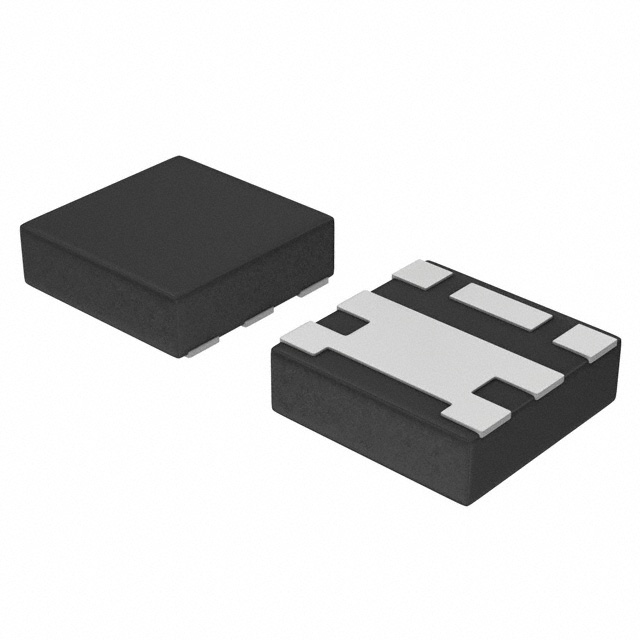

Diodes Incorporated DMN6070SFCL-7
