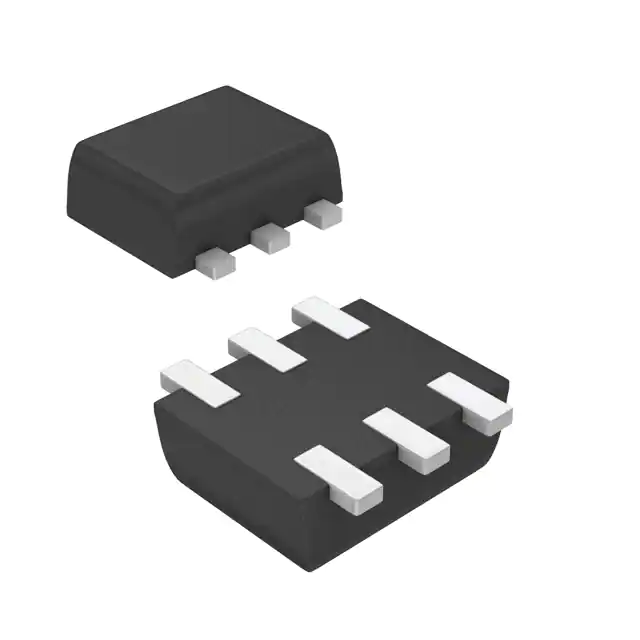

| Part Number | DMN601VKQ-7 | DMN601VK-7 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Standard | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 60V | 60V |
| Current - Continuous Drain (Id) @ 25°C | 305mA | 305mA |
| Rds On (Max) @ Id, Vgs | 2Ohm @ 500mA, 10V | 2Ohm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 50pF @ 25V | 50pF @ 25V |
| Power - Max | 250mW | 250mW |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | SOT-563, SOT-666 | SOT-563, SOT-666 |
| Supplier Device Package | SOT-563 | SOT-563 |
