| Part Number | DMN33D9LV-13 | DMN33D9LV-13A |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Standard | Standard |
| Drain to Source Voltage (Vdss) | 30V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 350mA (Ta) | 350mA (Ta) |
| Rds On (Max) @ Id, Vgs | 2.4Ohm @ 250mA, 10V | 2.4Ohm @ 250mA, 10V |
| Vgs(th) (Max) @ Id | 1.4V @ 100µA | 1.4V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 1.23nC @ 10V | 1.23nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 48pF @ 5V | 48pF @ 5V |
| Power - Max | 430mW (Ta) | 430mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

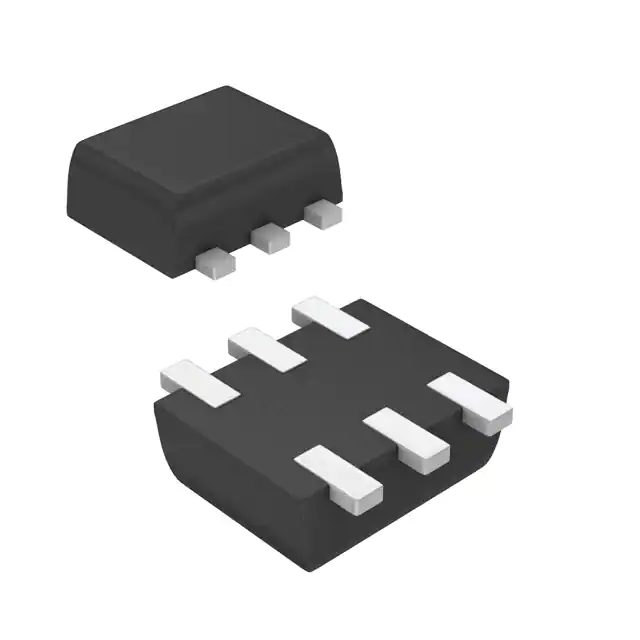

| Package / Case | SOT-563, SOT-666 | SOT-563, SOT-666 |
| Supplier Device Package | SOT-563 | SOT-563 |
