| Part Number | DMN3032LFDBQ-13 | DMN3032LFDB-13 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Standard | Standard |
| Drain to Source Voltage (Vdss) | 30V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 6.2A (Ta) | 6.2A |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 5.8A, 10V | 30mOhm @ 5.8A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 10.6nC @ 10V | 10.6nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 500pF @ 15V | 500pF @ 15V |
| Power - Max | 1W | 1W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

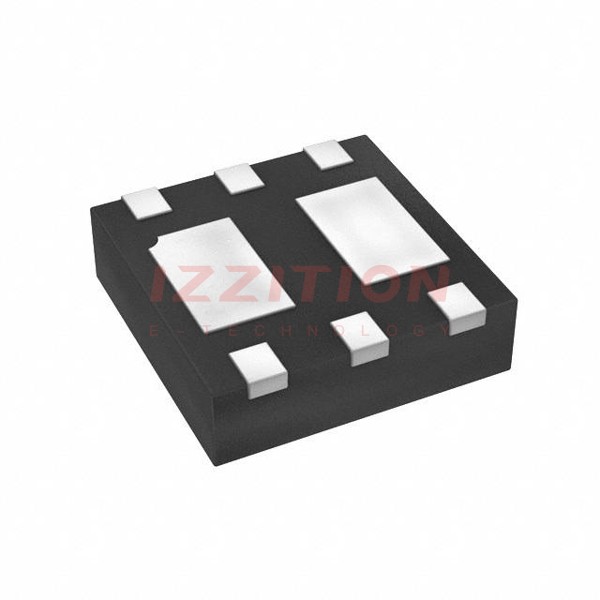

| Package / Case | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad |
| Supplier Device Package | U-DFN2020-6 (Type B) | U-DFN2020-6 (Type B) |
