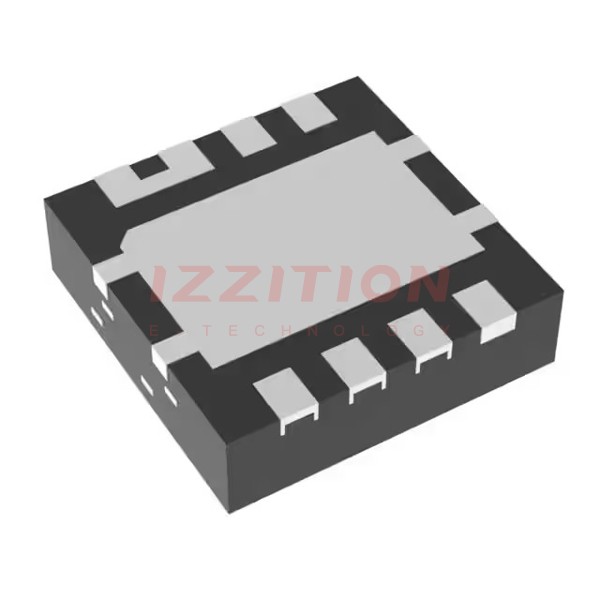

| Part Number | DMN3022LFG-13 | DMN3022LDG-13 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Standard | Standard |
| Drain to Source Voltage (Vdss) | 30V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 7.6A (Ta), 15A (Tc) | 7.6A (Ta), 15A (Tc) |
| Rds On (Max) @ Id, Vgs | 22mOhm @ 10A, 5V, 8mOhm @ 10A, 5V | 22mOhm @ 10A, 5V, 8mOhm @ 10A, 5V |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA, 1.2V @ 250µA | 2.1V @ 250µA, 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3.7nC @ 4.5V, 8nC @ 4.5V | 3.7nC @ 4.5V, 8nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 481pF @ 15V, 996pF @ 15V | 481pF @ 15V, 996pF @ 15V |
| Power - Max | 1.96W (Ta) | 1.96W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-PowerLDFN | 8-PowerLDFN |
| Supplier Device Package | PowerDI3333-8 (Type D) | PowerDI3333-8 (Type D) |
